How Bridge Pulse Helps Monitor Structural Health with Time-Based Scans
BridgePulse enables data comparison between scans taken at different times to track structural degradation, offering a powerful tool for maintenance teams, government agencies, and infrastructure planners.
PROJECT INFORMATION:
| Client: | Indian Railways |
| SERVICE: | Bridge Health Monitoring |
| INDUSTRY: | Railways |
Software Used:
Infrastructure monitoring challenges
Bridge infrastructure in India, especially in rural and semi-urban areas, is aging rapidly and subjected to extreme environmental stress. Service engineers traditionally rely on manual inspections, which are:
- Time-consuming
- Prone to human error
- Incapable of detecting micro-cracks and hidden rust
Missed or misdiagnosed damage can lead to severe safety hazards, costly repairs, and even bridge collapses. There was a pressing need for a precise, scalable, and intelligent bridge monitoring system.
Objectives
- Develop a scalable solution for extensive bridge inspection.
- Detect early signs of structural deterioration with precision.
- Provide actionable data to improve maintenance planning and execution.
- Enable periodic comparison to monitor degradation over time.
Methodology and System design
BridgePulse revolutionizes the traditional approach by using drone-based scans combined with advanced AI and ML models to detect, visualize, and analyze bridge conditions. It pinpoints structural anomalies such as:

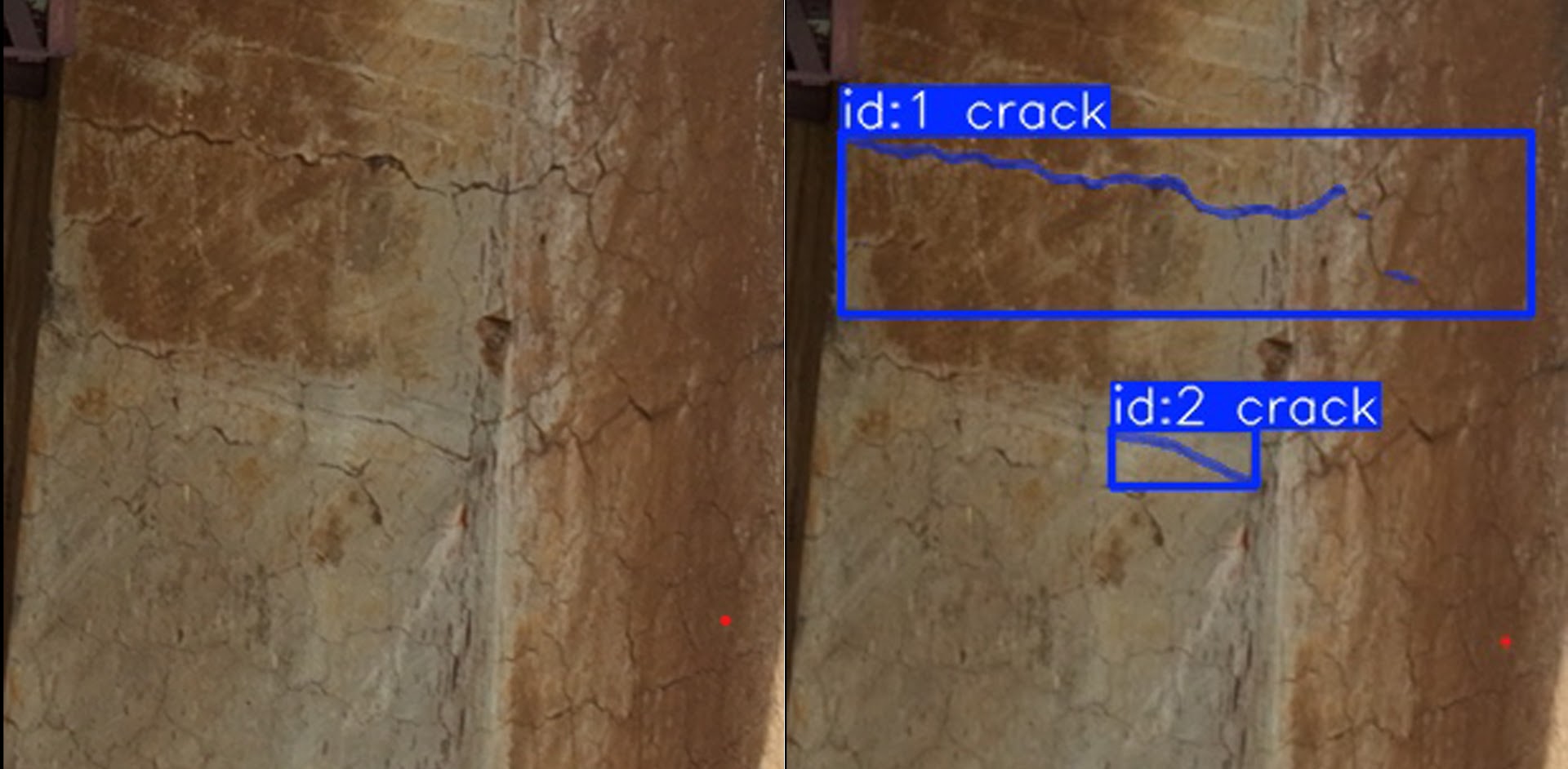

- Cracks (with depth and width estimation)

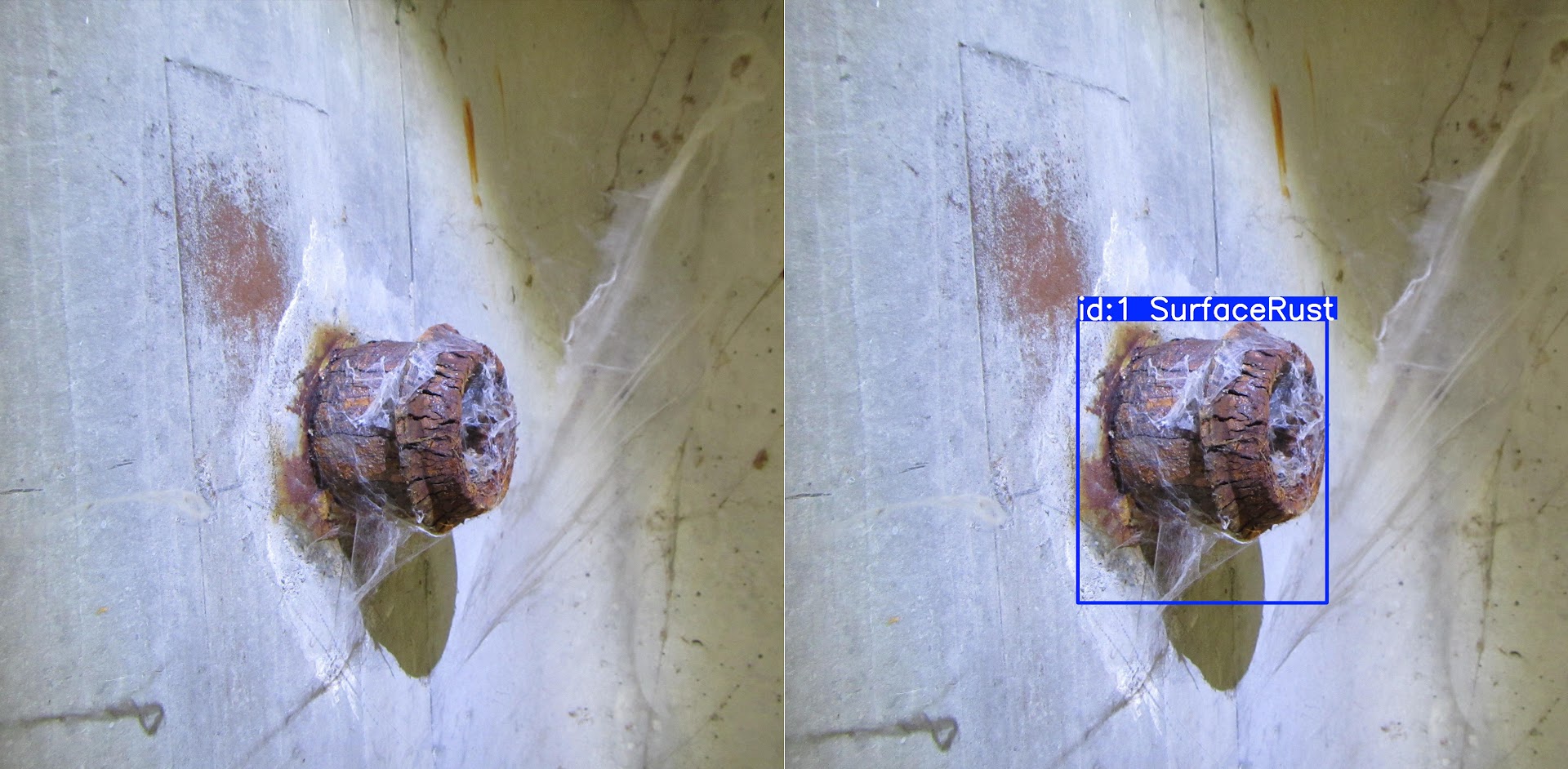

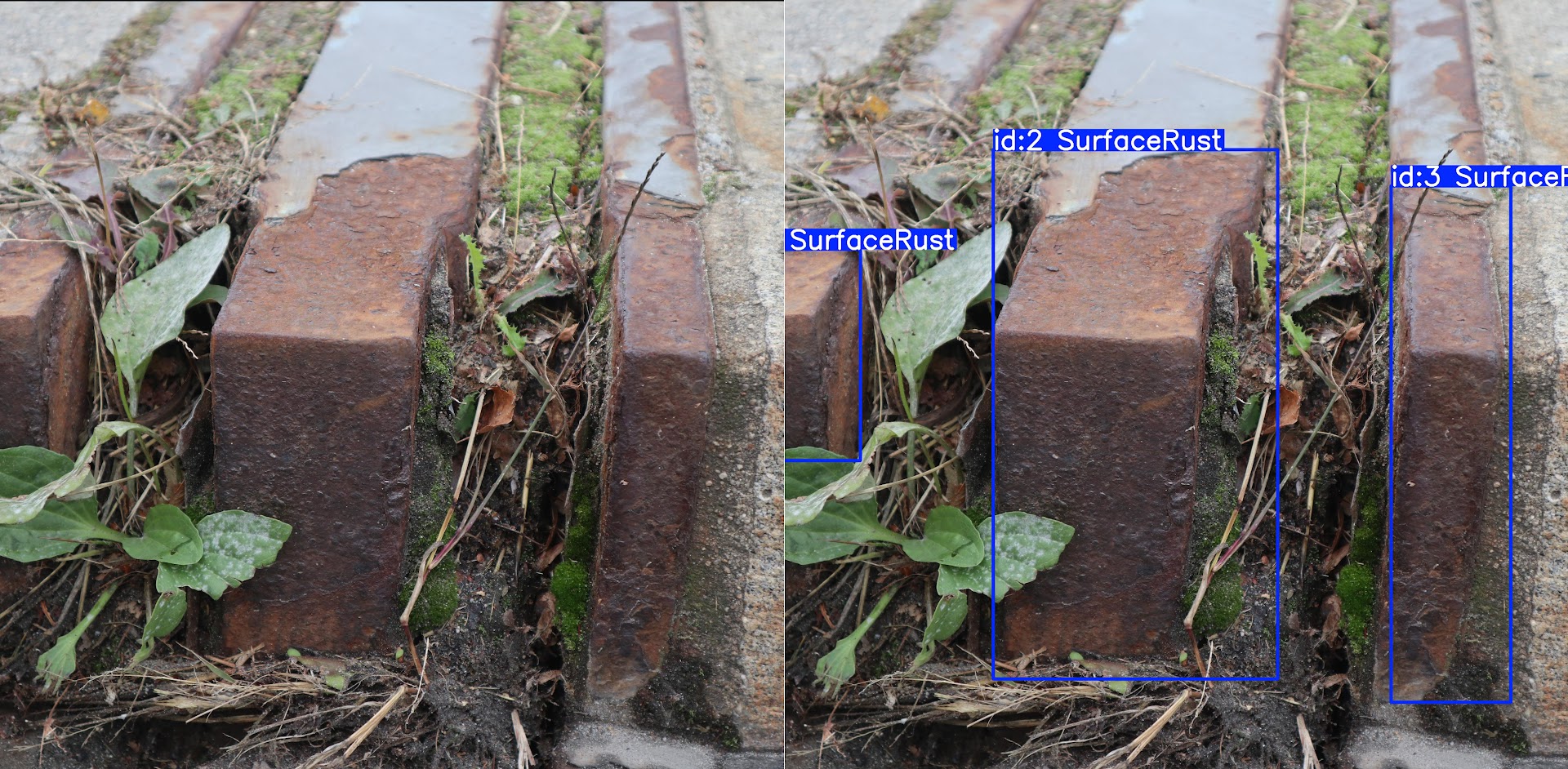

- Rust or corrosion in metal components
- Deviations from original design or previous scan data
- Crack and rust detection overlays
- Time-series comparison tools to monitor degradation
System architecture
Data acquisition
- High-resolution drone scans capture 2D and 3D data
- Mesh and photogrammetry models are generated using aerial data
Processing layer:
- AI/ML models trained on structural defect datasets

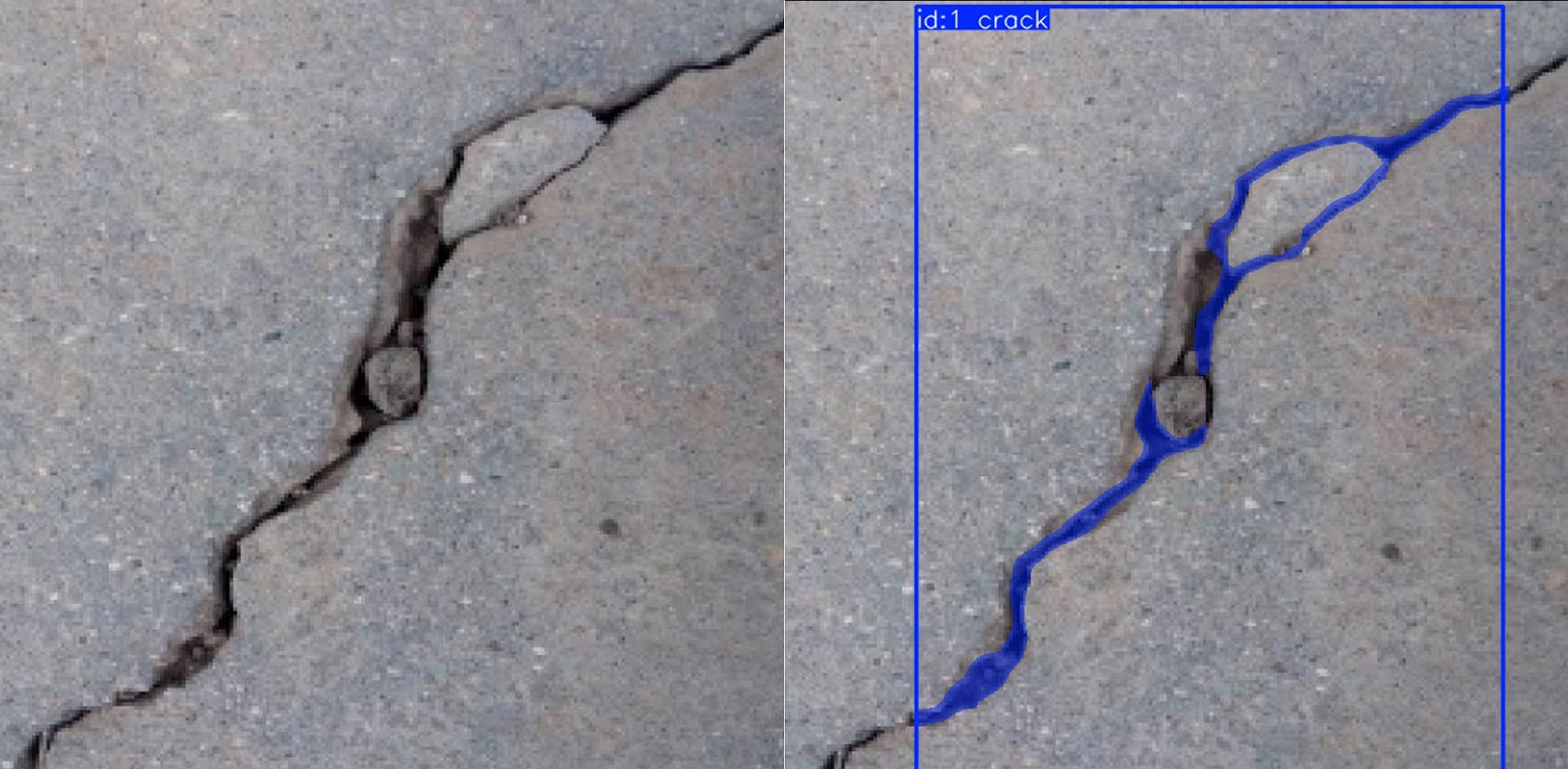

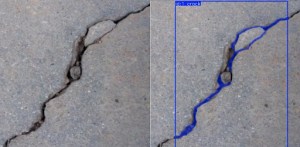

- Image segmentation and object detection models (CNNs) for crack/rust detection
- Depth estimation algorithms for structural severity classification
- Measurement tools to calculate distances, crack dimensions, and elevation.
Analytics & Reporting:
- Health risk categorization (Low / Moderate / Critical)
- Exportable inspection repor
Key functionalities
- Drone-Based Scanning with photogrammetry and mesh data generation
- AI-Powered Crack & Rust Detection with severity metrics (depth, width)
- Deviation Detection between historical and current scans
- Comparison View for structural change monitoring over time
Use case scenario
A service engineer responsible for bridge maintenance opens the BridgePulse dashboard. On the map, the user clicks on a bridge in the East Godavari district. Instantly, the latest photogrammetry model loads, showing visual overlays of cracks and rust. The user views the rust severity and notes that the crack on the left support column has grown 2 mm deeper compared to the scan from 6 months ago.The user downloads a PDF report with all measurements and forwards it to the public works Department. Thanks to this early detection, preventive maintenance is scheduled immediately.
Implementation challenges
- False positives: AI occasionally identifies fungus, stains or shadows as cracks
- Model training: Required extensive labeled data of bridge defects
- Environmental factors: Poor lighting and drone stability can impact scan quality
Mitigation strategies include improved training data, shadow filtering algorithms, and enhanced image processing pipelines.
Future scope and enhancements
- Predictive analytics: Forecast future degradation patterns based on historic data.
- Drone autonomy: Fully automated drone missions with minimal human oversight.
- Government integration: Seamless reporting to government dashboards and smart city frameworks.
- Â Cross-state expansion: Scanning and monitoring bridges across multiple states.
BridgePulse addresses a critical need in infrastructure monitoring through a convergence of drone technology, AI-driven defect detection, and intuitive digital platforms. It empowers engineers to move from reactive to predictive maintenance, significantly enhancing safety and operational efficiency. As bridges age, tools like BridgePulse will be essential in preserving structural health and public trust.
